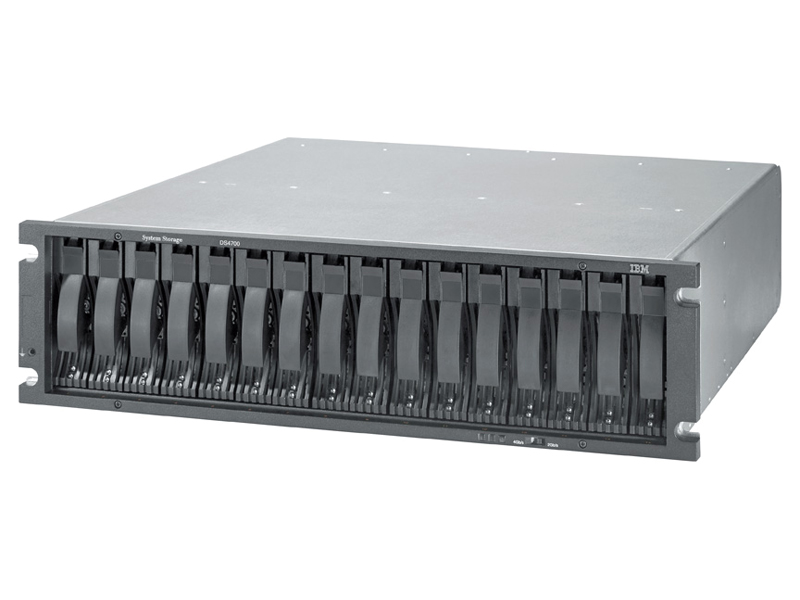

Система хранения данных IBM TotalStorage System DS4700
|
|
41Y0724 |
Cage frame assembly, midplane |
41Y5155 |
AC power supply and fan unit FRU, 600 W |
42D3346 |
AC power supply and fan unit FRU, 600 W |
42D3290 |
DC power supply and fan unit FRU |
41Y0679 |
Battery backup unit |
Controller Parts |
39M5896 |
Controller model 70 |
41Y0676 |
Controller model 72 |
Driver Parts |
42D0386 |
2 Gbps FC, 73.4 GB/10K drive module |
42D0369 |
2 Gbps FC, 146.8 GB/10K drive module |
42D0370 |
2 Gbps FC, 300 GB/10K drive module |
42D0371 |
2 Gbps FC, 36.4 GB/15K drive module |
42D0372 |
2 Gbps FC, 73.4 GB/15K drive module |
40D0373 |
2 Gbps FC, 146.8 GB 15K drive module |
40K6815 |
4 Gbps FC, 36.4GB/15K drive module |
40K6819 |
4 Gbps FC, 73.4GB/15K drive module |
40K6823 |
4 Gbps FC, 146.8GB/15K drive module |
42D0410 |
4 Gbps FC, 300GB/15K drive module |
44X2450 |
4 Gbps FC, 450GB/15K drive module |
59Y5460 |
4 Gbps FC, 600GB/15K drive module |
39M4557 |
3 Gbps SATA, 500GB HS, 7200 RPM drive module |
43W9715 |
3 Gbps SATA, 750GB HS, 7200 RPM drive module |
44X2458 |
3 Gbps SATA, 1TB HS, 7200 RPM drive module |
59Y5536 |
3 Gbps SATA, 2TB HS, 7200 RPM drive module |
