Qlogic QLA2310FL-CK

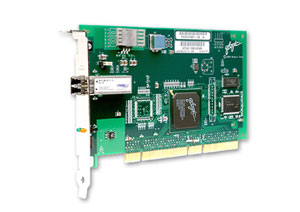

The SANblade 2310FL 64-bit, 66 MHz PCI / PCI-X to 2-Gigabit Low Profile Fibre Channel Host Bus Adapter is targeted specifically for Storage Area Networks (SANs) and server clustering environments, the SANblade QLA2310FL has been optimized for peak performance and real-world scalability.
Designed and deployed by major server and storage OEMs, the QLogic SANblade QLA2310F and QLA2310FL host bus adapters (HBAs) offer the high performance of 2-Gbps Fibre Channel combined with 64-bit, 66-MHz PCI-X. These multimode optic HBAs are targeted for servers in direct attach storage (DAS) as well as storage area network (SAN) environments. The QLA2310F/2310FL HBA is validated by every major OEM including Dell, EMC, HDS, HP, IBM, and Sun. The QLA2310’s extensive certification from major server and storage manufacturers makes it the perfect choice for multiplatform requirements.
Unprecedented Balanced Performance. QLogic has pushed the performance envelope with the SANblade 2310 Series. Engineered for maximum bandwidth, the SANblade QLA2310FL is the first to support both 2-Gigabit Fibre Channel and PCI-X, resulting in the union of the two fastest I/O technologies. This combination eliminates host bus bottlenecks that may impede the high performance of 2Gb Fibre Channel and creates the perfect balanced solution. To further boost IOPs performance, we have doubled our embedded RISC processor performance and moved time critical functions into the hardware modules allowing the SANblade QLA2310FL to hit breakneck speeds.
SAN & Clustering Solutions. The SANblade 2310FL is the ultimate choice for open systems solutions for SAN and server clustering, with support for concurrent multiple protocols - SCSI, IP, Virtual Interface (VI) and FC-Tape. Optimized for high-speed data movement, system management and application-to-application communication within server clusters, the SANblade QLA2310FL provides the flexibility needed to run complex storage networks. Cutting-edge SAN utilities like QLogic Management Suite provide advanced capabilities for remote configuration and management, load-balancing, failover, and LUN-masking. The SANblade QLA2310FL is far more than just hardware, it is a complete I/O solution.
The QLA2310FL-CK has a three-year warranty and supports the following Operating System: LINUX NETWARE 5.1/6.X Solaris WINDOWS 2000 WINDOWS NT 4.0 WINDOWS XP WINDOWS 64
Features
• Unique, single-integrated Fibre Channel controller for added reliability and optimum performance
• Autonegotiation of Fibre Channel speed bit rate (1 Gbps or 2 Gbps)
• Automatic topology detection
• Concurrent support for SCSI and IP protocols
• Simultaneous initiator and target mode support
• Easy detection of activities through an LED panel: Power, Online, Signal acquired, Loss of synchronization, Firmware error
• HBA and LUN level failover
• Persistent binding
• LUN masking
• Local and remote management
• Load balancing for optimized performance
• Diagnostics
• Loop back test
• Read/write buffer tests
Технические характеристики |
|
| Form Factor | Internal Adapter |
| Interface Compatibility | PCI-X |
| Standard Data-Rate(s) | 1 Gbps • 200 Mbps • 400 Mbps |
| Max. Data Transfer Rate | 2000 Mbps |
| Duplex Mode | Half Duplex • Full Duplex |
| Cabling Type | Fibre Channel • SCSI |
| Networking Connectors | LC |
| Fiber Signaling Mode | MultiMode |
| Fiber Channel Standards | FC-AL • FC-FS • FC-GS • FC-PH • FC-PLDA |
| Bus Clock Rate | 66 MHz |
| Bus Clock Bits | 64 bit |
| Max Fiber Distance | 500 Meters |
| Power Requirements | 5 Volts |
| LED Indicators | Power |
| Operating System | Linux • Microsoft Windows 2000 • Microsoft Windows NT • Microsoft Windows Server 2003 • Microsoft Windows XP Home Edition • Microsoft Windows XP Professional • Novell NetWare • SunSoft Solaris |
| Depth | 6.7 in. |
| Height | 2.5 in. |
| Warranty | 1 Year |
| Package Qty. | 1 |
