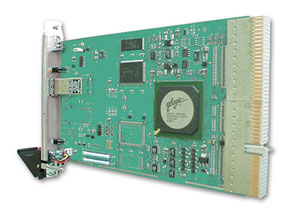

The QLA2202F/66-CK PCI dual port fibre channel host bus adapter (HBA) is based on QLogic award winning fibre channel architecture and is designed for performance in the SAN environment. The QLA2202F/66-CK supports SAN-enabled features like F_port fabric login, full duplex, FC-tape and IP protocol, creating a powerful SAN connectivity solution. It has a high speed RISC processor that enables the HBA to complete mulitple I/O operations without host intervention and uses Reduced Interrupt Operation (RIO) to reduce CPU interrupts per I/O. It features FC-AL Private and Public Loop, SCSI, IP and FC-Tape Profile support, SCSI Initiator & Target Operation and includes a robust suite of software drvivers.
Технические характеристики |
|
| Depth | 6.9 in |
| Device Type | Network adapter - 2 ports |
| Form Factor | Plug-in card |
| Height | 4.2 in |
| Interface Type | PCI 64 / 66 MHz |
| Humidity Range Operating | 10 - 90% |
| Max Operating Temperature | 131 °F |
| Min Operating Temperature | 32 °F |
| Compatible Slots | 1 x PCI 64 / 66 MHz |
| Cabling Type | Fibre Channel |
| Connectivity Technology | Wired |
| Data Link Protocol | FC-AL |
| Data Transfer Rate | 1.06 Gbps |
| Features | Full duplex capability |
| RAM DRAM | 128 KB |
| OS Required | SunSoft Solaris, Novell NetWare, Linux, Microsoft Windows NT, Microsoft Windows 2000 / XP Software Included Drivers & Utilities, SANsurfer Management Suite |
