| Packaged Quantity | 5 (specifications are for single item) |

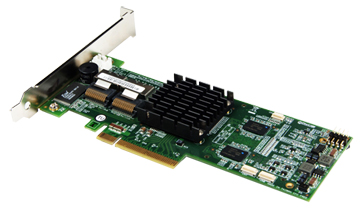

| Device Type | Storage controller (RAID) - plug-in card - low profile |
| Interface Type | PCI Express 2.0 x8 |
| Approximate Depth | 6.6 in |
| Approximate Height | 2.7 in |
Storage Controller
| Controller Interface Type | Serial ATA-600 / SAS |
| Data Transfer Rate | 600 MBps |
| Supported Devices | Hard drive, disk array (RAID) |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 1E, RAID 60 |
| Processor | PMC-Sierra 8011 600 MHz |
Expansion / Connectivity
| Interfaces | 2 x storage - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) |
| Compatible Slots | 1 x PCI Express 2.0 x8 |
Miscellaneous
| Compliant Standards | FCC Class B certified, UL, VCCI, C-Tick, BSMI, RoHS, KCC |
Software / System Requirements
| OS Required | FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows Server 2003, Red Hat Fedora Core, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008, Miracle Linux |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% |
