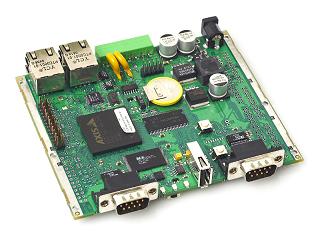

AXIS 82+
-
Developer board with Linux 2.4/2.6 based on the AXIS ETRAX 100LX MCM4+16 chip
-
100 MIPS performance
-
Full source code available
Complete embedded platform with Linux & open-source applications
AXIS 82+ Developer Board is the developer board for ETRAX 100LX MCM4+16. It also serves as a higher-end deployment platform for system integrators.
Complete ‘ready-to-use’ product
Supplied as a single printed circuit board, the AXIS 82+ Developer Board is equipped with external connectors for dual* 100 Mbit/s Ethernet, USB, two RS232 ports, and RS-485 connection. It is also equipped with internal connectors that accommodate one parallel port and an additional serial port.
Hardware
- AXIS ETRAX 100LX MCM4+16
- FLASH: 8 MB, RAM: 32 MB SDRAM, 32-bit interface
- DUAL Ethernet 10/100 Mbit/s Twisted Pair
- One using the internal full-speed 100 Mbit/s controller in the ETRAX chip
- One using an Ethernet-to-USB controller, thus limiting the theoretical maximum speed to 12 Mbit/s (i.e. the max speed of USB 1.1)
- 2 RS-232 serial ports, 9 pin male D-SUB (with RX, TX, RTS, CTS, DTR, DSR, CD and RI signals)
- 1 RS-485/RS-422 serial port on a screw terminal block (1 combined RX/TX pair and 1 TX pair)
