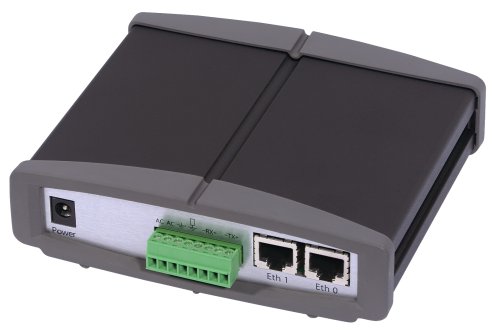

AXIS 83+
-
Programmable device server with Linux 2.4/2.6 based on the AXIS ETRAX 100LX MCM4+16 chip
-
100 MIPS performance
-
Full source code available
-
Aluminum casing, suitable for deployment
Complete ‘ready-to-use’ device server with Linux & open-source applications
The AXIS 83+ Device Server is shipped as a ready-to-use device, which means that you spend no time at all on hardware development, authority approval testing, purchasing, or programming Ethernet addresses. Once your application is complete, the software is simply flash-loaded to the Device Server Platform, using FTP (File Transfer Protocol).
For built-in purposes
The AXIS 83+ Device Server is compliant with immunity, emission and safety standards, and is ready for immediate deployment into industrial and other environmentally hostile environments.
Hardware
- AXIS ETRAX 100LX MCM4+16
- FLASH: 8 MB, RAM: 32 MB SDRAM, 32-bit interface
- DUAL Ethernet 10/100 Mbit/s Twisted Pair
- One using the internal full-speed 100 Mbit/s controller in the ETRAX chip
- One using an Ethernet-to-USB controller, thus limiting the theoretical maximum speed to 12 Mbit/s (i.e. the max speed of USB 1.1)
- 2 RS-232 serial ports, 9 pin male D-SUB (with RX, TX, RTS, CTS, DTR, DSR, CD and RI signals)
- 1 RS-485/RS-422 serial port on a screw terminal block (1 combined RX/TX pair and 1 TX pair)
