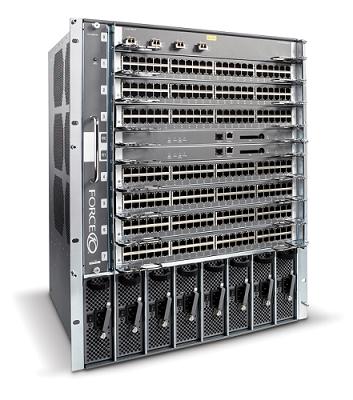

Chassis
- 8 Line card slots
- 2 Switch fabric and route processor module slots
- 8 Power supply module slots
- 1 Fan tray slot
- Size:
13 RU, 22.7 h x 17.4 w x 14.4" d
(57.66 h x 37.58 w x 44.20 cm d)
- Weight with factory-installed components: 55 lbs (24.95 kg)
- Weight fully loaded: 152.27 lbs (69.07 kg)
- AC Power
- Nominal input voltage:
100 - 240 VAC 50/60 HZ
- Maximum thermal output:
- 9,328 W (8,089 BTU/h) at 100/120 VAC
- 9,111 W (7,895 BTU/h) at 200/220 VAC
- Maximum input current per module:
- 14 A at 100 VAC
- 12 A at 120 VAC
- 7 A at 200 VAC
- 6 A at 240 VAC
- Maximum system power input:
- 9.4 KVA at 100/120 VAC
- 9.2 KVA at 200/240 VAC
- Maximum power consumption:
- 9,428 W at 100/120 VAC
- 9,211 W at 200/240 VAC
Redundancy/Availability
- 1+1 redundant Switch Fabric & Route Processor Modules (RPM)
- 2+1 redundant system power supply modules
- 4+1 redundant PoE Power Supply Modules supporting up to 384 PoE ports at 15.4W with deterministic failure mode
Performance
- Layer 2 MAC addresses: 16K
- Layer 3 forwarding entries: 12K
- Switching fabric capacity:
- C300: 1,536 Tbps
- Forwarding performance:
- 952 Mpps
- Jumbo frame support: 9252 bytes
- Link aggregation: 8 links per group & 128 groups per chassis
- Queues per port: 4 queues
- VLANs: 4096
- Line-rate Layer 2 switching: all protocols, including IPv4 and IPv6
- Line-rate Layer 3 routing: IPv4
- LAG load balancing based on Layer 2, IPv4 or IPv6 headers
IEEE Compliance
- 802.1AB Link Layer Discovery Protocol
- 802.1D Bridging, STP
- 802.1p L2 Prioritization
- 802.1Q VLAN Tagging, Double VLAN Tagging, GVRP
- 802.1s Multiple Spanning Tree Protocol
- 802.1w Rapid Spanning Tree Protocol
- 802.1X Network Access Control
- 802.3ab Gigabit Ethernet (1000BASE-T)
- 802.3ac Frame Extensions for VLAN Tagging
- 802.3ad Link Aggregation with LACP
- 802.3ae 10 Gigabit Ethernet
- 802.3af Power over Ethernet
- 802.3ak 10 Gigabit Ethernet (10GBASE-CX4)
- 802.3i Ethernet (10BASE-T)
- 802.3u Fast Ethernet (100BASE-TX, 100BASE-FX)
- 802.3x Flow Control
- 802.3z Gigabit Ethernet (1000BASE-X)
RFC Compliance
OSPF
- 1587 NSSA option
- 2154 OSPF MD5
- 2328 OSPF v2
- 2370 Opaque LSA option
RIP
|
General Routing and Switching Protocols
- 768 UDP
- 783 TFTP
- 791 IP
- 792 ICMP
- 793 TCP
- 826 ARP
- 854 Telnet
- 959 FTP
- 1027 Proxy ARP
- 1305 NTP v3
- 1519 CIDR
- 1542 BootP (relay)
- 1591 DNS client
- 1812 IPv4 routers
- 2131 BootP/DHCP helper
- 2338 VRRP
- 3176 sFlow
- ietf-draft Bidirectional Forwarding Detection
IP Multicast
Security
- 1492 TACACS+
- 2865 RADIUS
- 3128 Protection Against a Variant of the Tiny
- Fragment Attack
- Secure Copy (SCP)
- SSH v1/v2
SNMP/MIBs
- 1157 SNMP v1
- 1213 SNMP v2 (MIB-II)
- 1215 Traps for use with SNMP
- 1493 Bridges
- 1573 Interfaces group MIB
- 1757 RMON
- 1907 MIB for SNMPv2
- 2011 SNMPv2 IP MIB
- 2012 SNMPv2 TCP MIB
- 2013 SNMPv2 UDP MIB
- 2233 Interfaces MIB
- 2574 SNMPv3 USM
- 2575 SNMPv3 VACM
- 2576 Coexistence between SNMPv1/v2/v3
- 2665 Ethernet-like interfaces
- 2787 VRRP MIB
- Fault management (alarms & status reporting)
- Force10 Link aggregation MIB
- Force10 chassis MIB
- Force10 SNMP copy MIB
- Force10 monitoring MIB
- Force10 interface extensions MIB
Compliances
Safety
- CUS 60950, 3rd edition (US NRTL through CSA)
- CSA 60950, 3rd edition
- CE Mark (EN 60950-1)
- CB Report, all country deviations
- EN 60825-1 Safety of Laser Products-Part 1:
- Equipment Classification Requirements and User's Guide
- EN 60825-2 Safety of Laser Products-Part 2:
- Safety of Optical Fibre Communications Systems
- 21 CFR 1040.10 / 1040.11 FDA laser device requirements
EMC
- USA: FCC Part 15, Class A
- Canada: ICES-003, Class A
- Europe: EN55022 1998, Class A
- Japan: VCCI Class A
- ANZ: N17576
- EN 55024 1998
RoHS Compliance
All C-Series components are EU RoHS compliant with the exception of lead, which is exempt from the directive for network equipment.
|
