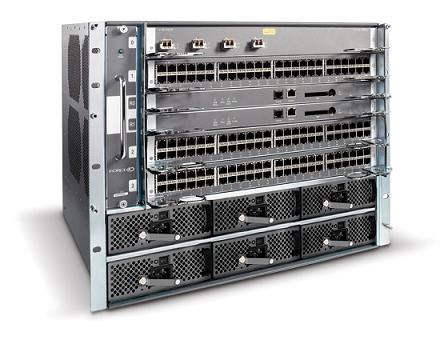

C150 (Resilient Switches)

Line-rate
10/100/1000
Base-T with Class 3 IEEE 802.3af PoE

Chassis

• Chassis
• 2 Switch fabric and route processor module slots
• 6 Power supply module slots
• 1 Fan tray slot
• Size:
  9 RU, 15.7 h x 17.5 w x 15.3" d
  (39.88 h x 44.45 w x 38.86 cm d)
• Weight with factory-installed components: 38 lbs (17.24 kg)
• Weight fully loaded: 86.63 lbs (39.29 kg)
• AC Power
  • Nominal input voltage:
    100 - 240 VAC 50/60 HZ
  • Maximum thermal output:
    • 4,899 W (4,647 BTU/h) at 100/120 VAC
    • 4,785 W (4,536 BTU/h) at 200/220 VAC
• Maximum input current per module:
  • 14 A at 100 VAC
  • 12 A at 120 VAC
  • 7 A at 200 VAC
  • 6 A at 240 VAC
• Maximum system power input:
  • 4.9 KVA at 100/120 VAC
  • 4.8 KVA at 200/240 VAC
• Maximum power consumption:
  • 4,949 W at 100/120 VAC
  • 4,835 W at 200/240 VAC

Common

• 19" front rack mountable
• Maximum operating specifications:
  • Temperature: 32° to 104°F
    (0° to 40°C)
  • Altitude: no performance degradation to 10,000 feet
    (3,048 meters)
  • Relative humidity: 5 to 85 percent, noncondensing
  • Shock: Bellcore GR-63
  • Vibration: Bellcore GR-63
• Maximum non-operating specifications:
• Temperature: -40° to 158°F (-40° to 70°C)
• Maximum altitude: 15,000 feet (4,572 meters)
• Relative humidity: 5 to 95 percent, noncondensing
• Vibration: Bellcore GR-63

Redundancy/Availability

• 1+1 redundant Switch Fabric & Route Processor Modules (RPM)
• • 1+1 redundant system power supply modules
  • 2+2 redundant PoE Power Supply Modules supporting up to 192 PoE ports at 15.4W with deterministic failure mode
• Online insertion and removal of all components Environmental self-monitoring

Performance

• Layer 2 MAC addresses: 16K
• Layer 3 forwarding entries: 12K
• Switching fabric capacity:
  • 768 Gbps
• Forwarding performance:
  •  476 Mpps
• Jumbo frame support: 9252 bytes
• Link aggregation: 8 links per group & 128 groups per chassis
• Queues per port: 4 queues
• VLANs: 4096
• Line-rate Layer 2 switching: all protocols, including IPv4 and IPv6
• Line-rate Layer 3 routing: IPv4
• LAG load balancing based on Layer 2, IPv4 or IPv6 headers

IEEE Compliance

• 802.1AB Link Layer Discovery Protocol
• 802.1D Bridging, STP
• 802.1p L2 Prioritization
• 802.1Q VLAN Tagging, Double VLAN Tagging, GVRP
• 802.1s Multiple Spanning Tree Protocol
• 802.1w Rapid Spanning Tree Protocol
• 802.1X Network Access Control
• 802.3ab Gigabit Ethernet (1000BASE-T)
• 802.3ac Frame Extensions for VLAN Tagging
• 802.3ad Link Aggregation with LACP
• 802.3ae 10 Gigabit Ethernet
• 802.3af Power over Ethernet
• 802.3ak 10 Gigabit Ethernet (10GBASE-CX4)
• 802.3i Ethernet (10BASE-T)
• 802.3u Fast Ethernet (100BASE-TX, 100BASE-FX)
• 802.3x Flow Control
• 802.3z Gigabit Ethernet (1000BASE-X)

RFC Compliance

• 1587 NSSA option
• 2154 OSPF MD5
• 2328 OSPF v2
• 2370 Opaque LSA option

• 1058 RIP v1
• 2453 RIP v2

• 768 UDP
• 783 TFTP
• 791 IP
• 792 ICMP
• 793 TCP
• 826 ARP
• 854 Telnet
• 959 FTP
• 1027 Proxy ARP
• 1305 NTP v3
• 1519 CIDR
• 1542 BootP (relay)
• 1591 DNS client
• 1812 IPv4 routers
• 2131 BootP/DHCP helper
• 2338 VRRP
• 3176 sFlow
• ietf-draft Bidirectional Forwarding Detection

• ietf-draft IGMP Snooping

• 1492 TACACS+
• 2865 RADIUS
• 3128 Protection Against a Variant of the Tiny
• Fragment Attack
• Secure Copy (SCP)
• SSH v1/v2

• 1157 SNMP v1
• 1213 SNMP v2 (MIB-II)
• 1215 Traps for use with SNMP
• 1493 Bridges
• 1573 Interfaces group MIB
• 1757 RMON
• 1907 MIB for SNMPv2
• 2011 SNMPv2 IP MIB
• 2012 SNMPv2 TCP MIB
• 2013 SNMPv2 UDP MIB
• 2233 Interfaces MIB
• 2574 SNMPv3 USM
• 2575 SNMPv3 VACM
• 2576 Coexistence between SNMPv1/v2/v3
• 2665 Ethernet-like interfaces
• 2787 VRRP MIB
• Fault management (alarms & status reporting)
• Force10 Link aggregation MIB
• Force10 chassis MIB
• Force10 SNMP copy MIB
• Force10 monitoring MIB
• Force10 interface extensions MIB

Compliances

• CUS 60950, 3rd edition (US NRTL through CSA)
• CSA 60950, 3rd edition
• CE Mark (EN 60950-1)
• CB Report, all country deviations
• EN 60825-1 Safety of Laser Products-Part 1:
  • Equipment Classification Requirements and User's Guide
• EN 60825-2 Safety of Laser Products-Part 2:
  • Safety of Optical Fibre Communications Systems
• 21 CFR 1040.10 / 1040.11 FDA laser device requirements

• USA: FCC Part 15, Class A
• Canada: ICES-003, Class A
• Europe: EN55022 1998, Class A
• Japan: VCCI Class A
• ANZ: N17576
• EN 55024 1998

RoHS Compliance

All C-Series components are EU RoHS compliant with the exception of lead, which is exempt from the directive for network equipment.
