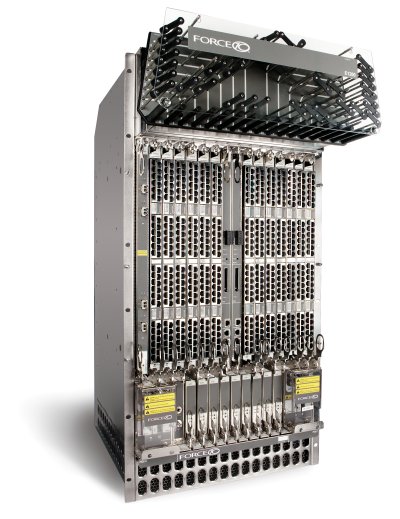

Chassis
- 14 line card slots
- Size: 21 RU, 36.75 h x 17.4 w x 21" d (93.3 x 44.2 x 53.3 cm)
- Weight (factory-installed components): 99 lbs (44.9 kg)
- Weight fully loaded: 321 lbs (145.6 kg)
- Maximum thermal output:
5,100 W (17,402 BTU/h)
- Maximum current draw per DC PEM: 150 A
- Maximum power consumption: 5,400 W
Common
- 19" front, 19" middle (optional) and 23" middle (E1200/E600 only) rack mountable
- Maximum Operating Specifications:
- Temperature: 32° to 104°F (0° to 40°C)
- Altitude: no degradation to 10,000 feet (3,048 m)
- Relative humidity: 5 to 85 percent, noncondensing
- Shock and vibration: Bellcore GR-63
- Maximum Non-operating Specifications:
- Temperature: -40° to 158°F
(-40° to 70°C)
- Maximum altitude: 15,000 feet (4,572 meters)
- Relative humidity: 5 to 95 percent, noncondensing
- Vibration: Bellcore GR-63
Redundancy/Availability
- 1+1 redundant Route Processor Modules (RPM)
- 8:1 redundant Switch Fabric Modules (SFM)
- 1+1 redundant DC Power Entry Modules (PEM)
IEEE Compliance
- 802.1AB Link Layer Discovery Protocol
- 802.1D Bridging, STP
- 802.1p L2 Prioritization
- 802.1Q VLAN Tagging, Double VLAN Tagging, GVRP
- 802.1s Multiple Spanning Tree Protocol
- 802.1w Rapid Spanning Tree Protocol
- 802.1X Network Access Control
- 802.3ab Gigabit Ethernet (1000BASE-T)
- 802.3ac Frame Extensions for VLAN Tagging
- 802.3ad Link Aggregation with LACP
- 802.3ae 10 Gigabit Ethernet
- 802.3ak 10 Gigabit Ethernet (10GBASE-CX4)
- 802.3i Ethernet (10BASE-T)
- 802.3u Fast Ethernet
(100BASE-TX)
- 802.3x Flow Control
- 802.3z Gigabit Ethernet (1000BASE-X)
- 9252 byte MTU
RFC Compliance
BGP4
- 1771 BGP v4
- 1772 Application of BGP4 in the Internet
- 1997 BGP Communities Attribute
- 1998 Application of BGP Community Attribute
- 2385 TCP MD5
- 2439 BGP Route Flap Damping
- 2519 Route Aggregation
- 2796 BGP Route Reflection
- 2842 Capabilities advertisement with BGP4
- 2858 Multi-protocol Extensions for BGP4 (MBGP)
- 2918 Route Refresh
- 3065 Autonomous System Confederations for BGP
- ietf-draft Graceful BGP restart
RFC Compliance (con't)
OSPF
- 1587 NSSA option
- 2154 OSPF MD5
- 2328 OSPF v2
- 2370 Opaque LSA option
- 3623 Graceful OSPF Restart
RIP
IS-IS
- 1142 Intra-domain Routing Protocol
- 1195 Routing for TCP/IP
- 2763 Dynamic Hostname Exchange
- 2966 Domain-wide Prefixes
- 3373 Three-Way Handshake
- 3567 Cryptographic Authentication
- ietf-draft Point-to-point operation over LAN
- ietf-draft Extended Ethernet Frame Size support
- ietf-draft Extensions for Traffic Engineering (wide metrics)
General Routing Protocols
- 768 UDP
- 783 TFTP
- 791 IP
- 792 ICMP
- 793 TCP
- 826 ARP
- 854 Telnet
- 959 FTP
- 1027 Proxy ARP
- 1305 NTP v3
- 1519 CIDR
- 1542 BootP (relay)
- 1591 DNS client
- 1812 IP v4 routers
- 2131 BootP/DHCP helper
- 2236 IGMP v1 and v2
- 2338 VRRP
- 2787 VRRP MIB
- 3176 sFlow
- ietf-draft Bidirectional Forwarding Detection
|
IPv6
- 2460 Specification
- 2461 Neighbor Discovery
- 2463 ICMPv6
- 2464 Transmission of IPv6 Packets
- 3513 Addressing
- 3587 Unicast Address Format
IP Multicast
- 1112 IGMP
- 2236 IGMP v2
- 2362 PIM SM
- 2858 Multi-protocol Extensions for BGP4 (MBGP)
- 3618 Multicast Source Discovery Protocol (MSDP)
- 3973 PIM DM
- ietf-draft PIM BSR
- ietf-draft IGMP Snooping
Security
- 2865 RADIUS
- 3128 Protection Against a Variant of the Tiny Fragment Attack, Secure Copy (SCP), SSH v1/v2
SNMP/MIBs
- 1157 SNMP v1
- 1213 SNMP v2 (MIB-II)
- 1215 Traps for use with SNMP
- 1493 Bridges
- 1573 Interfaces group MIB
- 1757 RMON
- 1907 MIB for SNMPv2
- 2011 SNMPv2 IP MIB
- 2012 SNMPv2 TCP MIB
- 2013 SNMPv2 UDP MIB
- 2233 Interfaces MIB
- 2574 SNMPv3 USM
- 2575 SNMPv3 VACM
- 2576 Coexistence between SNMPv1/v2/v3
- 2665 Ethernet-like interfaces
- 2787 VRRP MIB
- Fault management (alarms & status reporting)
- Force10 Link aggregation MIB
- Force10 chassis MIB
- Force10 SNMP copy MIB
- Force10 monitoring MIB
- Force10 interface extensions MIB
- Force10 multipath route MIB
QoS
- QoS mapping (Ethernet 802.1p and IP DiffServ)
- Traffic conditioning for 8 traffic classes/port
- Programmable WRED drop thresholds per queue
- Egress rate-shaping
- Weighted Fair Queuing
- Committed Access Rate support—2-rate, 3-color model
Management
- Industry-standard CLI
- XML configuration and command output
- Telnet, FTP, TFTP
- Secure Copy (SCP)
- NTP v3 Client, Server
- Secure Shell support (SSH)
- SNMP v1, v2c, v3
- sFlow traffic accounting
- HP OpenView support
- RADIUS/TACACS+ -based authentication
- RMON
- Port mirroring
- Out of band console/AUX and FE management ports
Designed for NEBS
- On board thermal and voltage monitoring
- GR-63-Core: NEBS, physical protection
- GR-1089-Core: EMC and Electrical Safety for
- Network Telecommunications Equipment
- SR-3580 NEBS criteria levels (Level 3 compliance)
Safety
- UL listed (UL 60950, 3rd Edition)
- CUL CSA 22.2 #60950
- CDRH 21
- CFR 1040
- EN 60950-1
- EN 60825-1 Safety of Laser Products –
- Part 1: Eqpt. Classification Reqmts / User’s Guide
- EN 60825-2 Safety of Laser Products –
- Part 2: Safety of Optical Fiber Comm. Systems
EMC
- USA: FCC CFR47 Part 15, Subpart J, Class A
- Canada: ICES-003, Issue-2, Class A
- Europe: EN 55022 1998 (CISPR 22: 1997), Class A
- Japan: VCCI V3/01.4 Class A
Immunity
- EN 300 386 V1.3.1 (2001-09)
- EMC for Network Eqpt.
- EN 55024 1998
- EN61000-4-2/IEC-1000-4-2
- EN61000-4-3/IEC-1000-4-3
- EN61000-4-4/IEC-1000-4-4
- EN61000-4-5/IEC-1000-4-5
- EN61000-4-6/IEC-1000-4-6
RoHS Compliance
All E-Series components are EU RoHS compliant with the exception of lead, which is exempt from the directive for network equipment.
|
