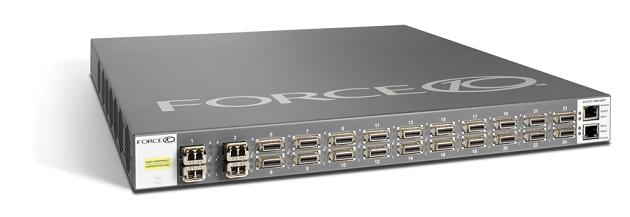

S2410
High Performance, Low Latency 10 GbE Data Center Switches
The S2410 combines the industry’s lowest Ethernet switching latency with industry leading 10 GbE density to provide IT managers with more flexible deployment options.
- 24-port 10 GbE fixed configuration 1-RU data center switch
- XFP or CX4 interfaces
- Ultra low (300 ns) 10 GbE switching latency
Key Applications
Coupled with the E-Series, which delivers unmatched resiliency and performance, the S2410 enables IT managers to deploy a reliable end-to-end 10 GbE data center solution, spanning from core aggregation to the server or storage edge.
- Ultra low latency interconnect switch for high performance cluster computing
- Low cost 10 GbE interconnect to network attached storage systems
- Low cost aggregation of 10 GbE uplinks from S50N switches in server racks
- Connects directly to 10 GbE servers
- Foundation for a virtualized applications model
Key Features
Resilient and scalable high density, low latency 10 GbE switch for high performance Ethernet environments.
- 24 line-rate 10 GbE ports in a 1-RU form factor
- S2410CP: 20 CX4 ports plus four 10 GbE pluggable XFP interfaces
- S2410P: 24 XFP interfaces
- 300 nanosecond switching latency under full load
- 64 bytes to 10,240 byte frames
- Switching Fabric capacity of 480 Gbps and forwarding capacity of 360 Mpps
- Supports Jumbo frames of up to 10,240 bytes supporting high-end server connectivity and network attached file servers
- 12 link aggregation groups with up to 12 members per group, using advanced hashing for even traffic distribution
- Built-in power redundancy
- CX4 interfaces support up to 1W of power per port for active cables or electrical to optical extenders
S2410 Specifications
|
Physical
- S2410CP:
- 20 line-rate 10GBase-CX4 ports plus four 10 GbE pluggable XFP interfaces
- S2410P:
- 24 line-rate 10 GbE XFP ports
- 1 RJ-45 console/management port with RS-232 signaling
- 1 RJ-45 Ethernet management port
- Size: 17 w x 16.73 d x 1.73" h (432 x 425 x 44 mm)
- Weight: 14.3 lbs (6.5 Kg)
- Power Supply: 100-240V AC, 50-60Hz, autosensing
- Maximum power consumption:
- S2410CP: 125W
- S2410P: 225W
- Maximum thermal output:
- S2410CP: 426 BTU/hr
- S2410P: 768 BTU/hr
- Maximum current draw:
- S2410CP: 1.15A 100/120 VAC, 0.575A 200/240 VAC
- S2410P: 2.05A 100/120 VAC, 1.025A 200/240 VAC
- 19" rack mountable
- Standard 1U chassis height
- Maximum Operating Specifications:
- Temperature: 32° to 104°F (0° to 40°C)
- Operating humidity: 10 to 90 percent (RH), non-condensing
- Maximum Non-operating Specifications:
- Storage Temperature: –4° to 158°F (–20 to 70°C)
- Storage humidity: 10 to 95 percent (RH), non-condensing
Reliability:
- S2410CP: MTBF 240,105 hours
- S2410P: MTBF 271,331 hours
Redundancy
- Load-balancing and Redundant AC Power
Performance
- Layer 2/MAC Addresses: 16K
- Switching Fabric Capacity: 480 Gbps (360 Mpps)
- Jumbo Frame Support: 10,240 byte packet support
- Link Aggregation: 12 members per link aggregation group and 12 groups per system
- Queues per port: 4
- VLANs: 1024 VLANs with 4096 tag value support
IEEE Compliance
- 802.1D Bridging, STP
- 802.1p L2 Prioritization
- 802.1Q VLAN Tagging
- 802.1s Multiple Spanning Tree Protocol
- 802.1w Rapid Spanning Tree Protocol
- 802.3ac Frame Extensions for VLAN Tagging
- 802.3ad Link Aggregation with LACP
- 802.3ae 10 Gigabit Ethernet
- 802.3ak 10 Gigabit Ethernet (10GBASE-CX4)
- 802.3x Flow Control
RFC Compliance
Security:
- 1492 TACACS+
- 2865 RADIUS
- 3128 Protection Against a Variant of the Tiny Fragment Attack
- 3580 IEEE 802.1x RADIUS Usage
- Ietf-draft:
- MAC Address Security
- Port Access Control
Quality of Service:
- 4 queues per port
- IEEE 802.1p
|
Management and SNMP:
- Industry familiar CLI with
- Scripting
- Command completion
- Context sensitive help
Web Based Management
- 768 UDP
- 783 TFTP
- 791 IP
- 792 ICMP
- 826 ARP
- 951 BootP
- 1157 SNMP v1
- 1212 Concise MIB Definition
- 1213 SNMP v2 (MIB-II)
- 1493 Bridge MIB
- 1643 Ethernet-like MIB
- 1901 Community based SNMPv2
- 1905 Protocol Operations for SNMPv2
- 1906 Transport Mappings for SNMPv2
- 1907 Management Information Base for SNMPv2
- 1908 Coexistence between SNMPv1 & SNMPv2
- 2096 IP forwarding table MIB
- 2131 DHCP Server
- 2233 The Interfaces Group MIB using SMI v2
- 2570 SNMP v3
- 2665 Ethernet-like interfaces
Compliances
Safety
- CUS 60950, 3rd edition (US NRTL through CSA)
- CSA 60950, 3rd edition
- CE Mark (EN 60950)
- CB Report, all country deviations
- EN 60825-1 Safety of Laser Products-Part 1:
- Equipment Classification Requirements and User's Guide
- EN 60825-2 Safety of Laser Products-Part 2:
- Safety of Optical Fibre Communications Systems
- 21 CFR 1040.10 and 1040.11 FDA laser device requirements
EMC
- USA: FCC CFR47 Part 15, Subpart J, Class A
- Canada: ICES-003, Issue-2, Class A
- Europe: EN55022 1998 (CISPR 22: 1997), Class A
- Japan: VCCI V3/01.4 Class A
- EN 61000-4-2 ESD
- EN 61000-4-3 Radiated Immunity
- EN 61000-4-4 EFT
- EN 61000-4-5 Surge
- EN 61000-4-6 Low Frequency Conducted Immunity
- EN 300 386 V1.3.1 (2001-09) EMC for Network Equipment
- EN 55024 1998
Telecoms
RoHS Compliance
All S2410 components are EU RoHS compliant with the exception of lead, which is exempt from the directive for network equipment.
|
