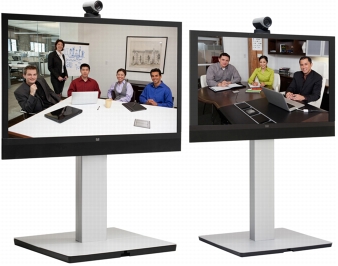

MX200 and MX300 Multipurpose Value Line . Системы видеоконференции Tandberg MXP (Cisco TelePresence) . Оборудование Tandberg (Cisco TelePresence) . Сетевое и телекоммуникационное оборудование

Главная страница :: Каталог :: Сетевое и телекоммуникационное оборудование :: Оборудование Tandberg (Cisco TelePresence) :: Системы видеоконференции Tandberg MXP (Cisco TelePresence)

Купить / Заказать / Узнать цену

Product compatibility	Fully compatible with standards-compliant telepresence and video systems
Software compatibility	Cisco TelePresence MX200 Cisco TelePresence Software Version TC 4.2 or later	Cisco TelePresence MX300 Cisco TelePresence Software Version TC 5.0 or later
Components	Fully integrated unit including: • Codec • Display • Camera • Integrated microphone and loudspeakers • Cisco TelePresence MX200 comes standard with one Cisco TelePresence Table Microphone 20; Cisco TelePresence MX300 comes standard with two microphones • Cables including: VGA-to-DVI-I cable, 3.5-mm jack audio cable, LAN cable, and power cable
Display	Cisco TelePresence MX200 • 42-inch LCD monitor • Resolution: 1920 x 1200 (16:9) • Contrast ratio: 2500:1 • Viewing angle: 178° • Response time: 8 ms • Brightness: 550cd/m2	Cisco TelePresence MX300 • 55-inch LCD monitor • Resolution: 1920 x 1200 (16:9) • Contrast ratio: 5000:1 • Viewing angle: 178 ° • Response time: 10 ms • Brightness: 450 cd/m2
PC and second-source video input	DVI-I
Supported PC input resolutions	SVGA (800 x 600) to 1080p (1920 x 1080)
Camera	• Cisco TelePresence PrecisionHD Camera: 1080p HDx4 • Resolutions: 1080p30 and 720p60 • Auto-focus • Wide-angle 72-degree horizontal field of view 4x optical zoom • Pan +/-100 degrees • Tilt +/-25 degrees
Audio system	• Integrated full-range speaker and bass • Integrated full-range microphone • Bluetooth-ready • Support for two Cisco TelePresence Table Microphone 20 • RCA PC audio input • RCA audio output
User interface	Eight-inch Cisco TelePresence Touch interface • Eight-inch projected capacitive touch screen • Resolution: 800 x 480
Language support	English
Physical dimensions (H x W x D)	Cisco TelePresence MX200 main unit with: • Floor stand: 56.3 x 40.4 x 23.7 in (1429 x 1026 x 602 mm) • Table stand: 30.7 x 40.4 x 10.2 in (781 x 1026 x 259 mm) • Wall-mount: 29.8 x 40.4 x 6.7 in (757 x 1026 x 169 mm)	Cisco TelePresence MX300 main unit with: • Floor stand: 60.0 x 50.4 x 26.4 in (1523 x 1280 x 671 mm) • Table stand: NA • Wall-mount: 37.1 x 50.4 8.5 in (942 x 1280 x 217 mm)
Weight	Cisco TelePresence MX200 main unit (all weight without packaging): • Floor stand configuration - 89 lb (40.2 kg) • Table stand configuration - 69 lb (31.5 kg) • Wall-mount configuration - 66 lb (30 kg) • Main unit only - 57 lb (26 kg)	Cisco TelePresence MX300 main unit (all weight without packaging): • Floor stand configuration - 113 lb (51.3 kg) • Table stand configuration - NA • Wall-mount configuration - 76 lb (34.4 kg) • Main unit only - 66 lb (30.1 kg)
Power	Autosensing power supply 100-240 VAC, 50/60 Hz 75 watts maximum
Temperature range	Operating temperature and humidity: • Ambient temperature: 32 to 95°F (0 to 35°C) • Relative humidity (RH): 10 to 90 percent • Storage and transport temperature at RH 10-90% (noncondensing): -4 to 140°F (-20 to 60°C)
Approvals and compliance	• Directive 2006/95/EC (Low-Voltage Directive) - Standard EN 60950-1 • Directive 2004/108/EC (EMC Directive) - Standard EN 55022, Class A - Standard EN 55024 - Standard EN 61000-3-2/-3-3 • Approved according to UL 60950-1 and CSA 60950-1-07 • Compliance with FCC15B Class A

Table 2. Video and Audio Specifications

Bandwidth	H.323 and SIP up to 6 Mbps point-to-point
Video standards	• H.261 • H.263 • H.263+ • H.264
Video features	• Widescreen: 16:9 • Advanced screen layouts • Intelligent video management • Local auto-layout
Live video resolutions (encode/ decode)	• 176 x 144 @ 30 fps (QCIF) • 352 x 288 @ 30 fps (CIF) • 512 x 288 @ 30 fps (w288p) • 576 x 448 @ 30 fps (448p) • 768 x 448 @ 30 fps (w448p) • 704 x 576 @ 30 fps (4CIF) • 1024 x 576 @ 30 fps (w576p) • 640 x 480 @ 30 fps (VGA) • 800 x 600 @ 30 fps (SVGA) • 1024 x 768 @ 30 fps (XGA) • 1280 x 1024 @ 30 fps (SXGA) • 1280 x 720 @ 30 fps (720p30)	• 1280 x 768 @ 30 fps (WXGA) • 1920 x 1080 @ 30 fps (1080p30)^* • 1440 x 900 @ 30 fps (WXGA+)^* • 1680 x 1050 @ 30 fps (WSXGA+)^* • 1600 x 1200 @ 30 fps (UXGA)^* • 512 x 288 @ 60 fps (w288p60)^* • 768 x 448 @ 60 fps (w448p60)^* • 1024 x 576 @ 60 fps (w576p60)^* • 1280 x 720 @ 60 fps (720p60) ^* Requires premium resolution option
Audio standards	• G.711 • G.722 • G.722.1 • 64/128 kbps MPEG4 AAC-LD
Audio features	• CD-quality 20-kHz stereo • Acoustic echo canceling • Automatic gain control • Automatic noise reduction • Active lip synchronization
Dual stream	• H.239 (H.323) dual stream • BFCP (SIP) dual stream • Support for resolutions up to 720p30 in both main stream and dual stream simultaneously

Table 3. Network, Security, and Management Specifications

Protocols	• H.323 • SIP
Network interfaces	• One LAN or Ethernet (RJ-45) 10/100/1000 Mbps for LAN
Other interfaces	• Bluetooth for future applications • RJ-45 for service
IP network features	• Domain Name System (DNS) lookup for service configuration • Differentiated Services (quality of service [QoS]) • IP adaptive bandwidth management (including flow control) • Auto-gatekeeper discovery • Dynamic playout and lip-sync buffering • H.245 dual-tone multifrequency (DTMF) tones in H.323 • Date and time support with Network Time Protocol (NTP) • Packet loss-based downspeeding • DNS-based URI dialing • TCP/IP • Dynamic Host Configuration Protocol (DHCP) • IEEE 802.1x network authentication • IEEE 802.1q VLAN
Firewall traversal	• Cisco TelePresence VCS Expressway technology • H.460.18 and H.460.19 firewall traversal
Embedded encryption	• H.323 and SIP point-to-point • Standards-based: H.235v3 and Advanced Encryption Standard (AES) • Automatic key generation and exchange • Support in dual stream
Security features	• Management through Secure HTTP (HTTPS) and Secure Shell (SSH) Protocol • IP administration password • Menu administration password • Disable IP services • Network settings protection
Cisco TelePresence Multiway^™	• Multiway conferencing helps enable video endpoint users to introduce a third party into an existing call utilizing a Cisco TelePresence MCU
System management	• Support for the Cisco TelePresence Management Suite (TMS) and Cisco TelePresence Multipoint Switch (with software release TC 5.0 or later) • Total management through embedded Simple Network Management Protocol (SNMP), Telnet, SSH, XML, and Simple Object Access Protocol (SOAP) • Remote software upload: Through web server, Secure Copy Protocol, HTTP, and HTTPS
Directory services	• Support for local directories (My Contacts) • Corporate directory • Unlimited entries using server directory supporting • Lightweight Directory Access Protocol (LDAP) and H.350 • Unlimited number for corporate directory (available with Cisco TelePresence Management Suite) • Local directory: 200 numbers • Received calls • Placed calls • Missed calls with date and time

Ordering Information

To place an order, please contact your local Cisco representative and refer to Table 4.

Table 4. Ordering Information

Product Name

Part Number
