Cisco TelePresence Quick Set C20 . Системы видеоконференции Tandberg MXP (Cisco TelePresence) . Оборудование Tandberg (Cisco TelePresence) . Сетевое и телекоммуникационное оборудование

Главная страница :: Каталог :: Сетевое и телекоммуникационное оборудование :: Оборудование Tandberg (Cisco TelePresence) :: Системы видеоконференции Tandberg MXP (Cisco TelePresence)

Купить / Заказать / Узнать цену

Table 1. Cisco TelePresence System Quick Set C20 Feature Summary

Feature Summary
Design Features	• Transforms a flat panel display into a 1080p high-definition meeting space • Simple, intuitive connections make set up as easy as connecting a DVD player • Cisco TelePresence System Quick Set C20 provides up to 1080p30 and 720p60 resolution Standards-compliant 1080p solution - compatible with standards-based video without loss of features • Sleek, compact design
Application Features	• Share multimedia and presentations at the touch of a button • Basic API available over IP (Telnet or SSH) • Dual-display option available • HD content sharing with 720p and WXGA
Performance Features	• Optimal definition up to 1080p30/720p60 • H.323/SIP up to 6 Mbps • Takes advantage of the Cisco^® TelePresence Total Solution, including Cisco TelePresence Multiway, recording and streaming and firewall traversal services

Product Capabilities

Table 2 provides a listing of the product capability specifications for the Cisco TelePresence System Quick Set C20.

Table 2. Product Specifications

Specification	Description

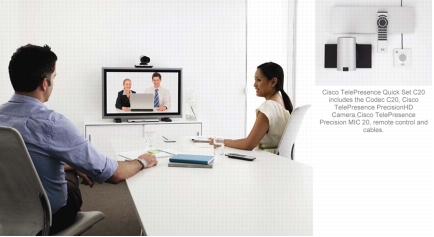

Set Delivered Complete With:	• Codec C20, Cisco TelePresence PrecisionHD Camera - 1080p4x or Cisco TelePresence PrecisionHD Camera - 1080p12x, Cisco TelePresence Precision MIC 20, remote control, cables and power supply
Bandwidth	• H.323/SIP up to 6 Mbps point-to-point
Firewall Traversal	• Cisco TelePresence Expressway Technology • H.460.18, H.460.19 Firewall Traversal
Video Standards	• H.261, H.263, H.263+, H.264
Video Features	• Native 16:9 Widescreen • Advanced Screen Layouts • Intelligent Video Management • Local Auto Layout
Video Inputs (2 Inputs)	1 X HDMI Inputs, Supported Formats: • 1920 x 1080@60 fps (1080p60) • 1920 x 1080@50 fps (1080p50) • 1920 x 1080@30 fps (1080p30) • 1920 x 1080@25 fps (1080p25) • 1280 x 720@60 fps (720p60) • 1280 x 720@50 fps (720p50) • 640 x 480@60 fps (480p60) • 800 x 600@60 fps (SVGA) • 1024 x 768@60, 70, 75, 85 fps (XGA) • 1280 x 1024@60, 75 fps (SXGA) 1 X DVI-I Inputs, Supported Formats: Analog (VGA): • 1920 x 1080@60 Hz (1080p) • 1280 x 720@60 Hz (720p) • 1600 x 1200@60 Hz (UXGA) • 1280 x 1024@60, 75 Hz (SXGA) • 1280 x 960@60 Hz • 1024 x 768@60, 70, 75, 85 Hz (XGA) • 1920 x 1200@50 Hz (WUXGA) • 1680 x 1050@60 Hz (WSXGA+) • 1440 x 900@60 Hz (WXGA+) • 1280 x 800@60 Hz (WXGA) • 1280 x 768@60 Hz (WXGA) Digital (DVI-D): • 1920 x 1080@60 fps (1080p60) • 1920 x 1080@50 fps (1080p50) • 1920 x 1080@30 fps (1080p30) • 1920 x 1080@25 fps (1080p25) • 1280 x 720@60 fps (720p60) • 1280 x 720@50 fps (720p50) • 640 x 480@60 fps (480p60) • 800 x 600@60 fps (SVGA) • 1024 x 768@60, 70, 75, 85 fps (XGA) • 1280 x 1024@60, 75 fps (SXGA)
Video Outputs (2 Outputs)	2 x HDMI Output, Supported Formats: • 1920 x 1080@60fps (1080p60) • 1280 x 720@60fps (720p60) • 1366 x 768@60fps (WXGA) • 1280 x 768@60fps (WXGA) • 1024 x 768@60fps (XGA) • 1280 x 1024@60fps (SXGA) • 640 x 480@60fps (VGA) • 800 x 600@60fps (SVGA) Live Video Resolutions (Encode/Decode) • 176 x 144@30, 60fps (QCIF) • 352 x 288@30, 60fps (CIF) • 512 x 288@30, 60fps (w288p) • 576 x 448@30, 60fps (448p) • 768 x 448@30, 60fps (w448p) • 704 x 576@30, 60fps (4CIF) • 1024 x 576@30, 60fps (w576p) • 640 x 480@30, 60fps (VGA) • 800 x 600@30, 60fps (SVGA) • 1024 x 768@30fps (XGA) • 1280 x 768@30fps (WXGA) • 1280 x 720@30, 60^*fps, HD720p60) • 1920 x 1080@30fps (HD1080p30)
Audio Standards	• G.711, G.722, G.722.1, 64 bit MPEG4 AAC-LD
Audio Features	• CD-Quality 20KHz Mono • 1 acoustic echo canceller • Automatic Gain Control (AGC) • Automatic Noise Reduction • Active lip synchronization
Audio Inputs (4 Inputs)	• 2 x microphone, 4-pin MiniJack • 2 x RCA/Phono (mixed to mono)
Audio Outputs (3 Outputs)	• 2 x RCA/Phono (dual mono)1 x HDMI, (digital main audio)
Dual Stream	• H.239 (H.323) dual stream • BFCP (SIP) dual stream • Support resolutions up to WXGA (1280 x 768) • When Dual video stream is activated the main video stream maximum is 720p 30fps
MultiPoint Support	• Cisco TelePresence Multiway support (requires Cisco TelePresence Video Communication Server [Cisco VCS] and Cisco TelePresence MCU) • Ability to natively join multipoint conferences hosted on Cisco Telepresence Multipoint Switch (CTMS)
Protocols	• H.323 • SIP
Embedded Encryption	• H.323/SIP point-to-point • Standards-based: H.235 v2 & v3 and AES • Automatic key generation and exchange • Supported in Dual Stream
IP Network Features	• DNS lookup for service configuration • Differentiated Services (QoS) • IP adaptive bandwidth management (including flow control) • Auto gatekeeper discovery • Dynamic playout and lip-sync buffering • H.245 DTMF tones in H.323 • Date and Time support via NTP • Packet Loss-based Downspeeding • URI Dialing • TCP/IP • DHCP • 802.1x network authentication
Security Features	• Management via HTTPS and SSH • IP Administration Password • Menu Administration Password • Disable IP services • Network Settings protection
Network Interfaces	• 1 x LAN/Ethernet (RJ-45) 10/100/1000 Mbit
Other Interfaces	• USB host for future usage
Cisco TelePresence PrecisionHD Camera - 1080p12x	• 1/3" CMOS • 12 x zoom • +15°/-25° tilt, +/- 90° pan • 43.5° vertical field of view • 72° horizontal field of view • Focus distance 0.3m-infinity • 1920 x 1080 pixels progressive @ 60fps • Other formats supported (configurable through Dip-switch): 1920 x 1080@60 fps (HDMI only), 1920 x 1080@50 fps (HDMI only), 1920 x 1080@30 fps, 1920 x 1080@25 fps, 1280 x 720@60 fps, 1280 x 720@50 fps, 1280 x 720@30 fps, 1280 x 720@25 fps • Automatic or manual focus/brightness/white balance • Far-end camera control • Dual HDMI and HD-SDI output • Upside-down mounting with automatic flipping of picture
Cisco TelePresence PrecisionHD Camera - 1080p4x	• 1/3" CMOS • 4 x zoom +15°/-25° tilt, +/- 90° pan • 43.5° vertical field of view • 72° horizontal field of view • Focus distance 0.3m-infinity • 1920 x 1080 pixels progressive @ 30fps / 1280 x 720 pixels progressive @ 60fps • Automatic or manual focus/brightness/white balance • Far-end camera control • Upside-down mounting with manual flipping of picture
System Management	• Support for the CiscoTelePresence Management Suite • Total management via embedded SNMP, Telnet, SSH, XML, SOAP • Remote software upload: via web server, SCP, HTTP, HTTPS • Remote control and on-screen menu system
Directory Services	• Support for Local directories (My Contacts) • Corporate Directory • Unlimited entries using Server directory supporting LDAP and H.350 • Unlimited number for Corporate directory (through Cisco TelePresence Management Suite) • 200 number local directory • Received Calls • Placed Calls • Missed Calls with Date and Time
Power	• Auto-sensing power supply • 100-240 VAC, 50/60 Hz • 75 watts max. for codec and main camera
Operating Temperature and Humidity	• 0° C to 35° C (32° F to 95° F) ambient temperature • 10% to 90% Relative Humidity (RH)
Storage and Transport Temperature	• -20° C to 60° C (-4° F to 140° F) at RH 10-90% (non-condensing)
Dimensions Codec C20	• Length: 13.8"/35.0 cm • Height: 1.2"/3.0 cm • Depth: 5"/12.7 cm • Weight: 4 lb/1.8 kg

^* Requires option.

Regulatory Compliance

• Directive 2006/95/EC (Low-Voltage Directive) - Standard EN 60950-1
