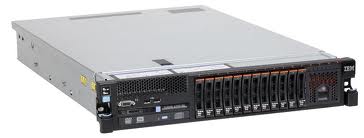

IBM System x3750 M4
The x3750 M4 blends outstanding flexibility and expandability. The unique 2+2 socket design enables pay-as-you-grow processing and memory expansion to help lower cost and manage growth. The 5+3 PCIe socket design allows you to pay for I/O capabilities as needed. The x3750 M4’s capabilities and performance allow clients to reduce total cost of ownership (TCO) by up to 52 percent over four years by consolidating multiple 2-socket servers into fewer 4- socket x3750 M4 servers.
Specifications:
Specifications:
| Form factor/height | 2U Rack |
|---|---|
| Processor (max) | Up to four 4-, 6- or 8-core Intel Xeon E5-4600 series processors |
| Number of processors (std/max) | 4 |
| Cache (max) | Up to 20 MB per processor |
| Memory (max) | Up to 1.5 TB via 48 slots with 32 GB LR-DIMM |
| Expansion slots | Five x8 low-profile PCIe Gen3 slots. Optional three x16 (mechanical) x8 (electrical) full-height/half-length PCIe Gen3 slots on an expansion riser |
| Media bays | Optional DVD drive |
| Disk bays (total/hot-swap) | Up to sixteen 2.5" HDDs or up to thirty-two 1.8" eXFlash SSDs* |
| Maximum internal storage | Up to 16 TB (2.5" HDD), 6.4 TB (1.8" eXFlash SSD) |
| Network interface | Embedded controller that supports 2 ports of 1 GbE (std.) and dual 10 GbE copper or fiber options |
| Power supply (std/max) | 900 W or 1400 W (1 standard, 2 maximum) |
| Hot-swap components | Fan modules, hard disk drives, eXFlash SSD drives, power supply |
| RAID support | IBM ServeRAID-M5110e RAID on motherboard, integrated 6 Gbps hardware. RAID-0/-1 (std) with -5/-50 and -6/-60 upgrades |
| Systems management | IBM IMMv2 with remote presence, Predictive Failure Analysis, Diagnostic LEDs, light path diagnostics panel, Automatic Server Restart, IBM Systems Director Active Energy Manager™ |
| USB ports | 2 front/2 back/2 internal |
| VGA ports | 1 front/1 back |
| Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere |
| Limited warranty | 3-year customer replaceable unit and on-site limited warranty, next business day 9x5, service upgrades available |
