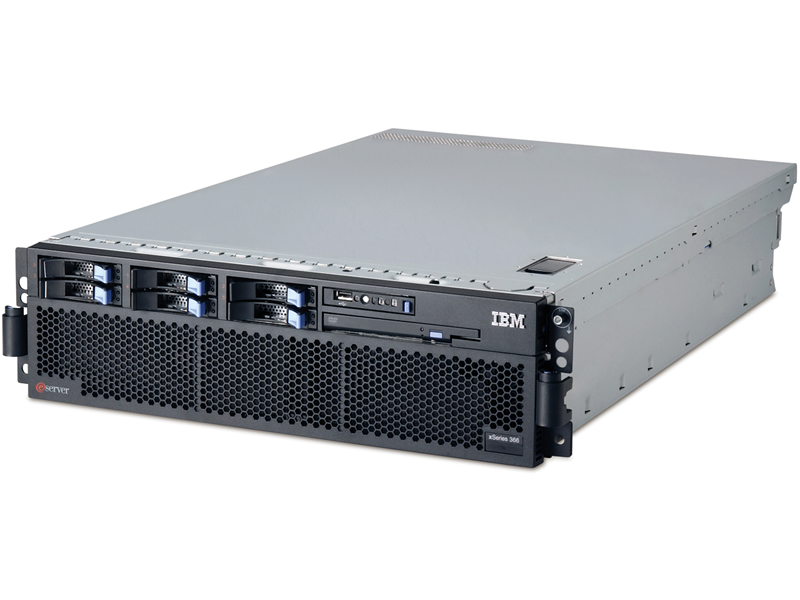

IBM eServer xSeries 366
Item | Description | Part Number |
1 | Top cover | |
(all models) | 26K8947 | |
2 | Power supply | |
1300 W (all models) | 24R2723 | |
3 | Power supply structure | |
(all models) | 26K8950 | |
4 | Power backplane | |
(all models) | 41Y3151 | |
5 | PCI-X board | |
(models 1Rx, 2Rx, 3Rx, 4Rx, 1Sx, 2Sx, 3Sx, 4Sx, E5U) | 41Y3155 replaces 39Y4173 replaces 23K4106 | |
6 | PCI-X switch card | |
(all models) | 39M2699 | |
7 | Chassis | |
(all models) | 39M2695 | |
8 | Fan | |
92 mm (all models) | 39M2694 | |
9 | LightPath/Media carrier | |
(all models) (cable included) | 39M2697 | |
10 | DVD-ROM drive | |
8/24X (primary) (all models) | 26K5413 | |
8/24X (alternate) (optional) | 26K5397 | |
(optional) | 42C0955 | |
CD-RW/DVD-ROM Combo drive | ||
24/24/8/24X HLDS Slim UltraBay Enhanced (alternate) (optional) | 39M3541 | |
24/24/8/24X PCC Slim UltraBay Enhanced (alternate) (optional) (UJDA-770) | 39M3563 | |
24/24/8/24X UltraBay Enhanced (alternate) (optional) | 26K5407 | |
24/24/8/24X TEAC Slim UltraBay Enhanced (alternate) (optional) | 26K5409 | |
CD-ROM drive | ||
24x (optional) | 26K5415 | |
24x (optional) | 26K5427 | |
24X (optional) | 39M3559 | |
127 mm (optional) | 26K5421 | |
127 mm (optional) | 39M3529 | |
11 | VRM | |
10.2 (dual core processor)(optional) | 39Y7256 | |
2U/105A (single core processor) | 24R2750 | |
(optional) | ||
12 | Microprocessor tray | |
(all models) | 40K0243 | |
13 | Front bezel | |
(all models) | 26K8956 | |
14 | Processor | |
3.16 GHz/667 MHz (1MB L2 cache) (models 1Rx, 1Sx) | 13M7878 | |
3.66 GHz/667 MHz (1MB L2 cache) (modesl 2Rx, 2Sx) | 13M7879 | |
Intel XeonDual Core Processor 7020 3 2.67 Ghz/667 MHz (2x 1 MB L2 cache) (models 3Rx, 3Sx) | 25R7846 | |
Intel Xeon Dual core Processor 7040 3.00 Ghz/667 MHz (2x 2 MB L2 cache) (models 1Rx, 4Rx, 4Sx) | 25R7847 | |
15 | Heat sink | |
all models) | 26K8805 | |
16 | Microprocessor baffle | |
(all models) | 26K9020 | |
17 | Hard drive filler | |
(all models) | 26K8680 | |
18 | Hard drive | |
36 GB (optional) | 39R7364 | |
73 GB(optional) | 39R7366 | |
19 | Memory | |
1 GB PC3200 ECC (all models) | 39M5808 | |
2 GB PC3200 ECC (optional) | 39M5811 | |
4 GB PC3200 ECC (optional) | v | |
20 | Air baffle | |
(all models) | 01R1479 | |
21 | Memory card | |
(models 1Rx, 2Rx, 3Rx, 4Rx, 1Sx, 2Sx, 3Sx, 4Sx) | 41Y3153 | |
22 | Fan | |
80 mm (all models) | 39M2693 | |
23 | SAS hard drive backplane | |
(all models) | 41Y3161 | |
24 | PCI-X adapter guide | |
(all models) | 26K8951 | |
25 | PCI divider | |
(all models) | 03K9050 | |
26 | I/O board | |
SAS Super (models 1Rx, 2Rx) | 41Y3166 | |
Basilisk P4 (models 1Rx, 3Rx, 4Rx, 1Sx, 2Sx, 3Sx, 4Sx) | 41Y3152 | |
. | AC inlet connector cover | |
(all models) | 26K8941 | |
. | Alcohol wipe | |
(all models) | 59P4739 | |
. | 3.0 V battery | |
(all models) | 33F8354 | |
. | Cable management arm | |
(all models) | 25R5238 | |
. | Cable | |
Active PCI (all models) | 39M2509 | |
CD/DVD signal (all models) | 25K9626 | |
SAS power | 42C2618 | |
SAS signal | 25K9610 | |
Serial | 39M2641 | |
USB | 25K9618 | |
. | Cable management arm | |
(all models) | 40K6556 | |
. | DVD/CD bay filler | |
(all models) | 26K8938 | |
. | EIA mounting bracket | |
(all models) | 26K8948 | |
. | Lift handle kit | |
(all models) | 39M2696 | |
. | Line cord | |
(all models) | 39M5377 | |
. | Processor card | |
(optional) | 40K0243 | |
. | Rack, media backplane | |
(all models) | 39M2697 | |
. | Retention module | |
(all models) | 26K8836 | |
. | Remote Supervisor Adapter (RSA) 2 | |
(all models) | 13N0833 | |
. | Scalability connector filler | |
(all models) | 26K8943 | |
. | ServeRAID-8i card | |
(optional) | 39R8731 | |
. | ServeRAID-8i battery pack | |
(optional) | 25R8118 | |
. | Slide kit | |
(all models) | 40K6591 | |
. | Ship bracket kit | |
(allmodels) | 40K6592 | |
. | System service label | |
(all models) | 26K8923 | |
. | Thermal grease | |
(all models) | 41Y8755 | |
Model 8863-PDH, PDK unique parts | ||
2 | Power supply | |
1300W (model PDH) | 39Y7341 | |
. | Rack kit | |
(model PDH) | 25R5236 | |
. | Bezel Kit | |
(model PDH, PKR) | 39M2637 | |
. | Hard drive filler | |
(model PDH, PKR) | 39M2638 | |
. | PCI card | |
(model PDH) | 40K2498 | |
. | FLASH Mod with IMAGE | |
(model PDH, PKR) | 39Y6827 | |
. | Hard drive | |
36 GB 10 000 rpm with tray (model PDH) | 40K1004 | |
. | Hard drive tray | |
(model, PDH, PKR) | 39Y8108 | |
. | Card, PCI, Flash | |
(Model PKR) | 41Y3137 | |
. | Hard drive | |
36 GB 10 000 rpm with tray (model PKR) | 40K1131 |
