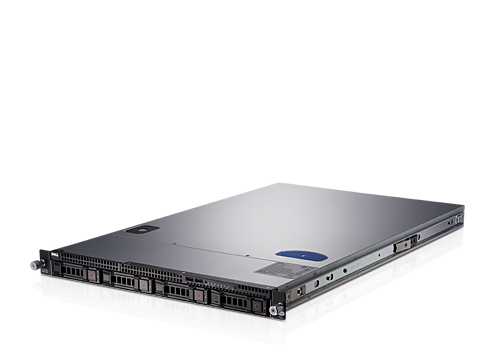

Dell PowerEdge C1100
The PowerEdge C1100 has the maximum number of memory slots in an Intel® Xeon® 5500/5600 series architecture.This power-efficient series more than doubles your memory capacity over previous Intel® generations, providing up to 18 DDR3 DIMM sockets for a maximum of 144GB.
In addition to supporting extremely large memory capacity, the PowerEdge C1100 supports lower-cost memory solutions by allowing for the use of smaller DIMMs in optimal configurations.
Choose from high-capacity 3.5" SATA, high-performance 2.5" serial attached SCSI (SAS), or enterprise-class single-level cell (SLC) solid-state drives (SSDs) for the optimal storage solution (up to 8TB) to support your applications.
Drive-configuration options include 4 x 3.5” or 10 x 2.5” hot-plug hard drives.
With the PowerEdge C line of servers, Dell has leveraged its expertise in custom-built hyperscale computing and high-volume production to bring ultra-dense, high-performance, efficient solutions to HPC, Web 2.0 and cloud builders.
We've designed PowerEdge C servers for large, homogenous cloud/cluster application environments where the software stack predominantly provides platform availability and resiliency. We haven't added the extra features you don't need to get the job done, such as extensive systems management, broad enterprise storage or same-day support.
Processor
- Intel® Xeon® 5500 and 5600 series processors
2 quad-core Intel® Xeon® 5500 series
2 quad-core or six-core Intel® Xeon® 5600 series
Operating System
- Factory Installed OS
Red Hat® Enterprise Linux® 5.5
Novell® SUSE® Linux® Enterprise Server 11 SP1 x64
Microsoft® Windows Server® 2008 R2 Enterprise and HPC Server 2008 R2 x64
Chipset
- Intel 5500 Tylersburg chipset
Memory
- Up to 144GB(18 DDR3 RDIMM slots): 2GB/4GB/8GB ECC DDR3 RDIMM
Dual-rank or quad-rank RDIMM support
Error checking and correction (ECC) and single device data correction (SDDC) technologies
maintain system data integrity and help prevent single bit or multi bit errors on DIMMs
8GB low-volt DDR3 Samsung Green Memory available
Embedded Hypervisor (Optional)
- VMware® ESX Server 4.1
Citrix® XenServer Enterprise 5.6
Microsoft® Windows Server® 2008 Hyper-V
Storage
- Hard Drives:
2.5 inch 6Gb SAS (15K rpm): 146GB
(10K rpm): 300GB, 600GB (10K rpm)
2.5 inch 6Gb nearline SAS (7.2K rpm): 500GB
2.5 inch SATA II(7.2K rpm): 160GB, 250GB, 500GB
3.5 inch 6Gb SAS (15K rpm): 300GB, 450GB, 600GB
3.5 inch 6Gb nearline SAS (7.2K rpm): 1TB, 2TB
3.5 inch SATA (7.2K rpm): 500GB, 1TB, 2TB
Solid-State Drives:
2.5 inch SLC SATA: 50GB, 100GB
Maximum Internal Storage:
Up to 8.0TB via four x 3.5" 2TBhot-plug SATA hard drives
Drive Bays
- 2 hard drive base options:
10 x 2.5” hard drive option: up to 10 SAS HDs(10K/15K), NL SAS (7.2k), SATA HDs (7.2k), SSDs (SLC)
4 x 3.5” hard drive option: up to 4 SAS HDs(15K), NL SAS (7.2k), SATA HDs (7.2k)
Slots
- Three PCI Express:
1 x 16 Gen 2 slot, full height, half length
1 x 4 Gen 2 proprietary connector, for LSI SAS daughtercard
1 x 4 Gen 2 proprietary connector, for Intel dual-port 10GbE daughtercard
Drive Controllers
- Integrated ICH10R on motherboard
LSI 6Gb SAS2008 daughtercard
LSI MegaRAID SAS 9260-8i
Dell PERC H700
Dell PERC H800
RAID Controllers
- LSI 6Gb SAS2008 mezzanine
LSI MegaRAID SAS 9260-8i
Dell PERC H700
Dell PERC H800 with 512MB of battery backed cache
Communications
- Intel® 82576 – 2 x Gb Ethernet and 1 x 100Mb Ethernet dedicated management port
Optional add-in NICs:
Intel Gb ET quad port server adapter, Gb, Copper, PCI-E x4
Intel 82599 dual port server adapter, 10Gb, SFP+, PCI-E x4
Chelsio S320 dual port server adapter, 10Gb, PCI-E x8
Optional add in HBAs:
Mellanox dual port QDR infiniband HBA
Qlogic QLE 7340 40Gb/s QDR Infiniband HBA (single port) – Red Hat Enterprise Linux native support for the Qlogic 7340 HBA is planned for a future Red Hat Enterprise Linux 5 update. Note that, in terms of support, these are considered third party drivers by Red Hat, Inc.
Power
- Dual hot-plug redundant high-efficiency 650W power supplies or single high-efficiency 650W power supply
Auto-switching universal 110/220 volts
Availability
- Hot-plug hard drives
Hot-plug redundant power
ECC memory
Single device data correction (SDDC)
Cluster support
