RS700-E7/RS8

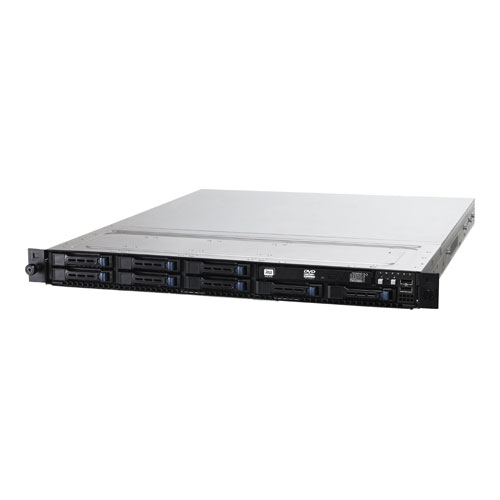

ASUS RS700-E7/RS8 – это сервер формата 1U, предназначенный для установки двух процессоров серии Intel Xeon E5-2600 с тепловыделением до 135 ватт. К его достоинствам относятся поддержка большого объема системной памяти, продуманная система охлаждения и высокая энергоэффективность.Specifications
| Процессор / Системная шина | 2 x Socket 2011 Intel® Xeon® processor E5-2600 Series (TDP≦135W) Processor QPI 6.4 / 7.2 / 8.0 GT/s *Please refer to overview for details |
| Чипсeт | Intel® C602-A PCH |
| Оперативная память | Total Slots : 24 (4-channel per CPU, 12 DIMM per CPU) Capacity : Maximum up to 512GB RDIMM Memory Type : DDR3, 1600/1333/1066/800, RDIMM DDR3, 1333/1066, UDIMM, with ECC DDR3, 1333/1066, LRDIMM Memory Size : 1GB, 2GB, 4GB, 8GB, 16GB, 32GB RDIMM 1GB, 2GB, 4GB, 8GB UDIMM 8GB, 16GB, 32GB LRDIMM |
| Слоты расширения | 2 * PCI-E x16 (Gen3 x16 Link) (FH/HL ) 1 * PIKE Slot for Stroage Enhancement |
| Хранилище | SATA Controller : Intel® C602-A x 4 x SATA2 300MB/s ports 2 x SATA3 6Gb/s ports Intel® Rapid Storage Technology(RST) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) SAS/SATA Controller : ASUS PIKE 2008 8-port SAS 6G RAID card ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card ASUS PIKE 2108 8-port SAS2 6G RAID card |
| Корпус для жесткого диска | 8x 2.5" HDD Bays* |
| Auxiliary Storage FDD/CD/DVD | 1 * Slim-type Optical Drive Bay Options: No Device / DVD-RW (DVD-RW default for North America) |
| Сеть | 1 x Quad Port Intel Ethernet Controller i350-AM4 + 1 x Mgmt LAN |
| Графика | Aspeed AST2300 with 16MB |
| Разъемы на плате | 5 x RJ-45 ports (One for ASMB6-iKVM) 4 x USB 2.0 ports (Front x 2, Rear x 2) 1 x Internal A Type USB Port 1 x VGA port 1 x PS/2 keyboard port 1 x PS/2 mouse port |
| Поддержка ОС | Windows® Server 2008 R2 Windows® Server 2008 Enterprise 32/64-bit *(Subject to change without any notice) RedHat® Enterprise Linux AS5.6/6.0 32/64-bit SuSE® Linux Enterprise Server 11.2 32/64-bit VMWare ESX4.1/ESXi4.1 |
| Администрирование | ASWM Enterprise On-Board ASMB6-iKVM for KVM-over-IP |
| Безопасность | Europe (CE, EN55022 compliance to EU Directive 89/366/EEC) |
| EMI | US (FCC, CFR47 Part 15, Class A) Europe (CE, EN55022 & EN55024) Australia (C-TICK) Taiwan (BSMI) China (CCC) |
| Размеры | 689.5mm * 444mm * 43mm(1U) |
| Вес | 18Kg |
| Электропитание | 1+1 Redundant 800W 80PLUS Platinum Power Supply |
| Экология | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessory Box | 1 x Bag of Screws 2 x AC Power Cable 1 x RS700-E7 Support DVD 1 x RS700-E7 User's Guide 1 x ASWM ENTERPRISE DVD 1 x ASUS ASWM Enterprise User's Guide 1x ASMB6-iKVM SDVD 1x ASWM6-iKVM User Guide |
| Опционально | ASUS PIKE 2008 RAID card (90-S00CS0130T) ASUS PIKE 2008/IMR RAID card (90-S00CS0140T) ASUS PIKE 2108 H/W RAID card (90-S00CS0150T) |
| Примечание | *ASUS PIKE RAID card is required for the HDDs to be recognized for system boootup |
Part List
| Chassis | ASUS R12D CHASSIS ASSY(13GS1E0AM020-1) |
| Материнская плата | Z9PP-D24 (61-MSVDW0-01 ) |
| Бекплайн для жестких дисков | 1 x BP8LX-R10A (60SC01T0-SC0A01) |
| Передняя панель | 1x FPB-R12A (60SC00H0-SC0A01) |
| Riser Card | 1x RE16L-R12A (60SC00D0-SC0A02) 1x RE16R-R12A (60SC00E0-SC0A02) |
| Процессорный радиатор/ кулер | 2x LGA2011 1U VC HEAT SINK (13071-00090600) |
| Блок питaния | 2x 800W Redundant Power Supply (0A100-00080000) |
| Салазки для жесткого диска | 8x Hot-Swap 2.5" HDD Trays (13GS120AM021-1) |
| HDD Cage | 1x R12A 2.5 BAY MODULE ASSY (13GS120AM042-1) |
| Вентилятор | 8x System Fans (40mm 56mm) (13G074152010) |
| Крепеж для вентилятора | 8x FAN HOUSING (13GS1200P070-1) 16x REVIT (13G014082010) 16x SCREW M3.8 *7L(F) B-ZN #2 (13GMCF4W070Z-1) |
| Air Duct/Mylar | 1x R12D PUMA 24D FANDUCT A (13GS1E00P020-1) 1x R12D PUMA 24D FANDUCT B (13GS1E00P030-1 |
| Оптический привод | 1x Slim ODD (17G14113400N) 1x R10E ODD BEZEL ASSY (13GS1J0AP010-1) 1x ODD CONTAINER (13GS1600P030-1) 2x SCREW M2*3L (13GMBK2C031W-1) 2x SCREW M2*2.5L (13GMAKXC025W-2) |
| Mounting Rails | 1 x Friction rail kit (13GS190AM042-1) |
| Кабель | 1x FPB CBL 2*8 TO 2*10+1*6,950MM (14003-00110100) 2x MINI SAS TO 4 SATA L:820MM (14001-00170000) 1x POWER CABLE 8P TO 8P,400MM (14001-00260000) 1x POWER CABLE 8P TO 8P;L=200MM (14G000610140) 1x SLIN SATA CABLE 7+6P TO 7&4P (14G000112303) 1x USB CABLE 2*5P TO 2*4P,L=550MM (14G000509210) |
