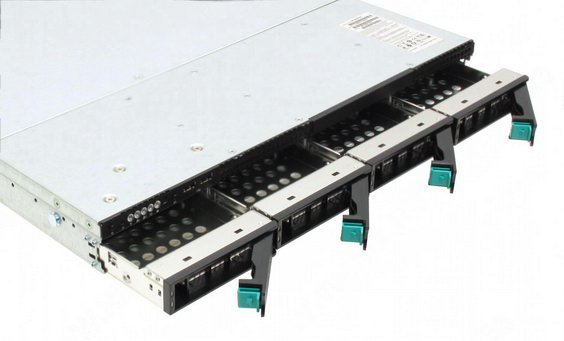

Intel® Server System SR1695WBAC
Key features
- Supports up to two Intel® Xeon® Processor 5500 or 5600 series1
- Highly scalable DDR3 memory (8 DIMMs)
- One PCI Express* 2.0 x16 (x8 electrical) slot plus one Intel® I/O Expansion Module (PCI Express 2.0 x8)
- Four hot-swap SAS/SATA drive bays supporting either 3.5” or 2.5” HDD in the same drive carrier
- Optimized fan speed control and thermal solutions
- Intel® Intelligent Power Node Manager and integrated DCMI / IPMI 2.0 manageability 2
- SR1695WB: 450-watt, high-efficiency (80 plus) power supply system includes 1+1 hot swappable redundant power supply module and one power distribution board that supports AC or DC
- SR1690WB: 650-watt, high-efficiency (80 plus) power supply with PMBus capability
High performance and low TCO
The Intel® Server System SR1690WB and SR1695WB were designed from the ground up to be energy efficient, supporting redundant AC or DC power options while delivering the performance you’d expect from an Intel® Xeon® processor system.
These high performance 1U rack system feature the optimized Intel® Server Board S5500WB and are perfect for applications where energy costs and total cost of ownership (TCO) are paramount, such as Internet portal data centers, cloud computing, and high performance computing (HPC).
Target applications
High-density computing environments where energy costs and total cost of ownership are paramount such as Internet portal data centers, cloud computing, and high performance computing (HPC).
Specifications
| Essentials | |
|
Launch Date
|
Q2'10 |
|
Status
|
Launched |
|
Expected Discontinuance
|
1H 2013 |
|
Limited 3-year Warranty
|
Yes |
|
Extended Warranty Available for Purchase (Select Countries)
|
Yes |
|
Chassis Form Factor
|
1U Rack |
|
Chassis Dimensions
|
1.7" x 17.75" x 26.5" |
|
Socket
|
LGA1366 |
|
Target Market
|
Cloud/Datacenter |
|
Power Supply
|
450W power supply |
|
Power Supply Type
|
AC |
|
Redundant Power
|
Supported |
|
Heat Sink Included
|
Included |
|
Backplanes
|
Included |
|
Included Items
|
(1) Intel® Server Board S5500WB; (4) Drive carriers; (1) PCI Express 2.0 x8 riser; (2) 450W power supplies; (1) SATA backplane to connect 4 drives; (4) System fans; (1) Cabled front panel; (2) Processor heatsinks |
|
# of 2.5" Hard Drives
|
4 |
|
2.5" Hard Drive Support
|
Supports up to four hot-swap 2.5" SAS/SATA drives |
|
# of 3.5" Hard Drives
|
4 |
|
3.5" Hard Drive Support
|
Supports up to four hot-swap 3.5" SAS/SATA drives |
|
Intel® Server Management Software
|
Yes |
|
Additional Information URL
|
Link |
| Memory Specifications | |
|
Memory Types
|
DDR3 ECC UDIMM, RDIMM |
|
# of DIMMs
|
8 |
|
Max Memory Size (dependent on memory type)
|
64 GB |
| Graphics Specifications | |
|
Integrated Graphics
|
Yes |
| Expansion Options | |
|
PCIe x8 Gen 2.x
|
1 |
|
PCIe x16 Gen 2.x
|
1 |
|
IO Expansion x4 Gen 1.x
|
1 |
| I/O Specifications | |
|
# of USB Ports
|
4 |
|
# of SATA Ports
|
6 |
|
RAID Configuration
|
Optional AXXROMBSASMR Hardware RAID |
|
# of Serial Ports
|
2 |
|
Integrated LAN
|
Dual, GbE |
| Package Specifications | |
|
Max CPU Configuration
|
2 |
| Advanced Technologies | |
|
Intel® Remote Management Module Support
|
AXXRMM3 |
|
Integrated BMC with IPMI
|
IPMI 2.0 w/ DCMI |
|
Intel® Intelligent Power Node Manager
|
Yes |
