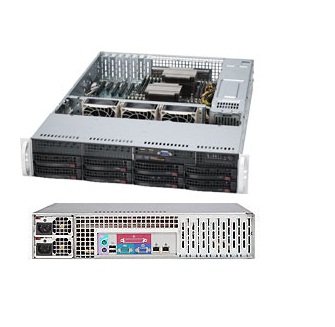

SYS-6027R-73DARF
Product Description:Supermicro Intel Products
2U DP SuperServer 6027R-73DARF for mainstream server solutions to the data centers, HPCs, web servers, etc.
Mfg. Part Number:
Supermicro SYS-6027R-73DARF, black color.
RoHS Compliant
Specifications:
Key Factor
Server Type: 2U Rackmount
CPU Socket: 2
Memory Dimm: 16
HDD Bay: 8x 3.5"
LAN: 4x GbE
Expansion Slot: 6
Power Supply: 740W (1+1) Redundancy
Form Factor
Chassis: Supermicro SC825TQ 2U Rackmount Server Chassis
Dimensions: Height 3.5" (89mm) x Width 17.2" (437mm) x Depth 25.5" (648mm)
Motherboard
Supermicro X9DRD-7LN4F,
Processor
Dual sockets of Intel® R, LGA 2011-Pin.
Support Intel® QPI system bus speed up to 8 GT/s
Support Intel® 64-bit processor:
- 8-core Intel® new generation processor Xeon® E5-2600 series (Sandy Bridge-EP)
Support CPU max TDP up to 130W
Supermicro 2U passive CPU cooling kit included
System Memory
16x DDR3 240-pin DIMM sockets
Four-channel memory bus per processor
Support up to 512GB of ECC Registered DDR3-1600/1333/1066MHz memory, or
Support up to 128GB of ECC un-buffered DDR3-1600/1333/1066MHz memory
Support 1.5V & 1.35V memory voltage
Integrated On-Board Device
• Chipset
Intel® C602J PCH chipset
• SAS Controller
LSI SAS2308 SAS2 6.0Gbps Controller
Support eight SAS2 6.0Gbps ports
Support SAS RAID 0, 1, & 10.
• SATA Controller
Intel® C602J SATA3 6.0Gbps Controller
Support two SATA3 6.0Gbps ports and four SATA2 3.0Gbps ports
Support SATA RAID 0, 1, 5 (Windows only), & 10.
• Server Management
Winbond® WPCM450 BMC chipset
Support for Intelligent Platform Management Interface v.2.0
Support for IPMI 2.0 with virtual media over LAN and KVM-over-LAN
• Network Controller
One Intel® i350 Quad-Port Gigabit Ethernet Controller
Support 10BASE-T, 100BASE-TX, and 1000BASE-T with RJ-45 outputs.
One Realtek RTL8201N PHY for IPMI dedicated LAN
• Graphics
Matrox G200 graphics controller with DDR2 video memory (Nuvoton WPCM450 BMC)
• Super I/O
Nuvoton W83527
Expansion Slot
Six low-profile PCI-E 3.0 x8 slots
Input/Output
Serial Attached SCSI: 8x SAS2 6.0Gbps ports
Serial ATA: 2x SATA3 6.0Gbps ports, 8x SATA2 3.0Gbps ports.
LAN: 4x RJ-45 ports for GbE LAN, 1x RJ-45 port for IPMI dedicated LAN.
USB: 11x USB 2.0 ports (4x rear, 6x via internal header, 1x Type A)
Graphics: 1x D-Sub 15-Pin VGA port
Serial Port: 1x Fast UART 16550 serial port, 1x internal serial header.
Front Panel
Buttons: Power On/Off, System Reset buttons.
LEDs: Power, Hard drive, Networking, System Overheat, & Power fail LED.
Ports: N/A
Drive Bay
8x 3.5" drive bays with HDD hot-swap tray
Supermicro BPN-SAS-825TQ 2U SAS/SATA backplane
1x 5.25" slim-type drive bay for peripheral drive
Supermicro slim SATA DVD-ROM drive and slim SATA DVD bracket kit as optional
System BIOS
128Mb SPI Flash EEPROM with AMI® BIOS
Power Supply
740W (1+1) Redundant power supply with PMBus
High-efficiency with 80 PLUS Platinum
AC Input: 100-240 V, 9-3.5 Amp, 50-60 Hz.
System Cooling
Three 80mm 7000RPM cooling fans with PWM control in the middle.
