SYS-6037R-72RTF
Product Description:Supermicro Intel Products

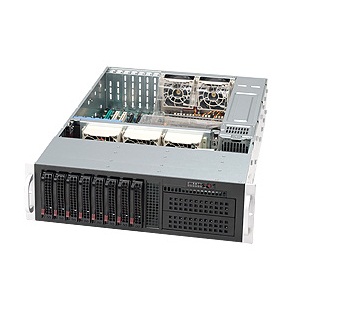

3U DP SuperServer 6037R-72RTF for mainstream server solutions
Mfg. Part Number:
Supermicro SYS-6037R-72RTF, black color.
RoHS Compliant
Features:
Supermicro 3U server 6037R-72RTF is designed for the Cloud computingand other virtualization needs,
Hosting & Application delivery, Database processing & Storage, Simulation, Automation, etc.
• Dual Intel 10Gb Ethernet SFP+ ports
• SAS2 6Gb/s support
• 512GB DDR3 SDRAM
• IPMI 2.0 + KVM with dedicated LAN
• 920W Redundant Platinum Level highefficiency power supplies
Specifications:
Key Factor
Server Type: 3U Rackmount
CPU Socket: 2
Memory Dimm: 16
HDD Bay: 8x 3.5"
LAN: 2x SFP+ 10GbE
Expansion Slot: 7
Power Supply: 920W (1+1) Redundancy
Form Factor
Chassis: Supermicro SC835TQ 3U Rackmount Server Chassis
Dimensions: Height 5.2" (132mm) x Width 17.2" (437mm) x Depth 25.5" (648mm)
Motherboard
Supermicro X9DRH-7TF, eATX 12" x 13" (30.5cm x 33cm).
Processor
Dual sockets of Intel® R, LGA 2011-Pin.
Support Intel® QPI system bus speed up to 8 GT/s
Support Intel® 64-bit processor:
- 8-core Intel® new generation processor Xeon® E5-2600 series (Jaketown)
Support CPU max TDP up to 130W
System Memory
16x DDR3 240-pin DIMM sockets
Four-channel memory bus per processor
Support up to 512GB of ECC Registered DDR3-1600/1333/1066/800MHz memory, or
Support up to 128GB of ECC un-buffered DDR3-1600/1333/1066/800MHz memory
Support 1.5V & 1.3V Memory Voltage
Integrated On-Board Device
• Chipset
Intel® C602J chipset
• Storage Controller
SAS:
- LSI SAS2208 SAS2 6.0Gbps Controller
- Two SAS connectors support up to eight SAS2 6.0Gbps ports
- Support SAS RAID 0, 1, 5, 6, 10, 50, & 60.
SATA:
- Intel® C602J SATA3 6.0Gbps Controller
- Support two SATA3 6.0Gbps ports, and eight SATA2 3.0Gbps ports.
- Support SATA RAID 0, 1, 5 & 10.
• Server Management
Nuvoton® WPCM450 BMC chipset
Support for Intelligent Platform Management Interface v.2.0
Support for IPMI 2.0 with virtual media over LAN and KVM-over-LAN
• Network Controller
One Intel® X540 dual-port 10Gigabit Ethernet Controller
Support 10BASE-T, 100BASE-TX, 1000BASE-T, & 10GBase-T with RJ-45 outputs.
One Realtek RTL8201N PHY for IPMI dedicated LAN
• Graphics
Matrox G200 graphics controller with DDR2 video memory via Nuvoton WPCM450 BMC
• Super I/O
Nuvoton W83527HG chip
Expansion Slot
One PCI-E 3.0 x16 slot
Six PCI-E 3.0 x8 slots
Input/Output
Serial Attached SCSI: 8x SAS2 6Gbps ports.
Serial ATA: 2x SATA3 6Gbps ports, 8x SATA2 3Gbps ports.
LAN: 2x SFP+ ports for 10GbE LAN, 1x RJ-45 port for IPMI dedicated LAN.
USB: 7x USB 2.0 ports (4x rears, 2x via headers, 1x type A)
Graphics: 1x D-Sub 15-Pin VGA port
Serial Port: 1x Fast UART 16550 serial port, 1x serial header.
Front Panel
Buttons: Power On/Off, System Reset buttons.
LEDs: Power, Hard drive, Networking, UID, fan fail/System Overheat, & Power fail LEDS.
Ports: N/A
Drive Bay
8x 3.5" drive bays with HDD hot-swap tray, enterprise SAS or SATA HDD recommended.
Supermicro CSE-SAS-833TQ 3U SAS/SATA backplane
2x 5.25" drive bays for peripheral drive
Supermicro 5.25" slim SATA DVD-ROM drive and slim SATA DVD bracket kit as optional
System BIOS
128Mb SPI Flash EEPROM with AMI® BIOS
Power Supply
920W (1+1) Redundant power supply with PMBus
High-efficiency with 80 PLUS Platinum Certified
AC Input: 100-240 V, 11-4.5 Amp, 50-60 Hz.
System Cooling
Three 80mm hot-swap cooling fans with PWM control in the middle
Two 80mm exhaust cooling fans with PWM control at the rear
